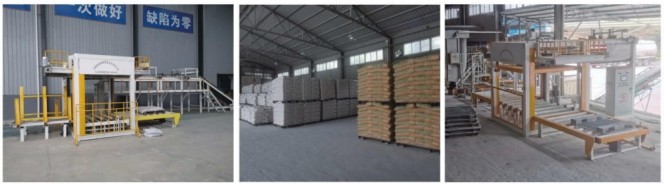

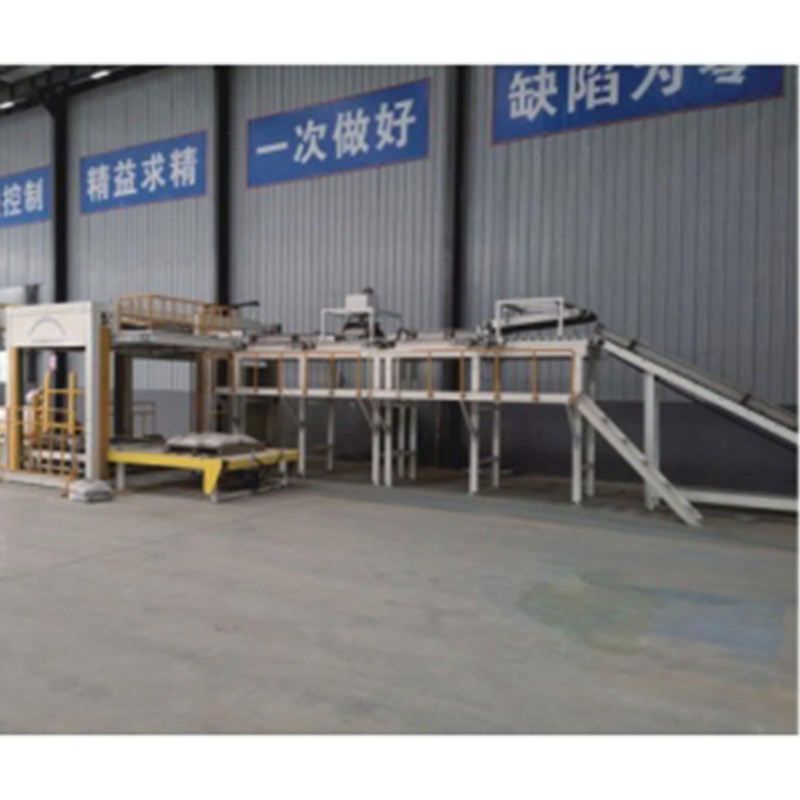

High Position Flat Push High Level Palletizer SPRM-GPTM

This machine adopts linear coding and has a fast palletizing speed, with a maximum of 1200 bags per hour.
This machine adopts a servo coding mechanism to achieve any stack type stacking, which is suitable for the characteristics of multiple bag types and diverse coding types. When changing bag types and coding types, the bag-dividing mechanism does not require any mechanical adjustment. Just select the stack type on the operation interface, which is convenient for variety changes during production. The servo bag-dividing mechanism operates smoothly, reliably, and will not cause impact on the bag body. Protect the appearance of the bag to the greatest extent.
The bag body rotation of this machine is achieved through a servo steering machine. Compared with the bag stopper rotation, it will not cause impact on the bag body and will not damage the appearance of the bag body.
This machine has low power consumption, high speed, and an attractive stack shape, which saves operating costs.
This machine adopts a heavy pressure type or vibration type flattening machine to squeeze or vibrate the bag body flat, achieving a good shaping effect.
This machine can adapt to multiple bag types and multiple coding forms, and the transformation speed is fast (the production variety transformation can be completed within 10 minutes).

Structural characteristics
This machine is equipped with a conveyor bag storage capacity monitoring device and automatically adjusts the production speed based on the monitoring data.
This machine has a simple structure and is easy to maintain. The door of the control cabinet is equipped with sealing strips and a high-quality ventilation and filtration device. The equipment is equipped with multiple layers of alarm indicator lights, which can indicate different faults (faults that need to be reset, faults that automatically reset, operation indications, etc.). The program design is reasonable and has a fault prompt function. When the bag stack shows signs of tilting, toppling or scattering, it can automatically stop the machine.
The paint surfaces of the guard plates (with a thickness of no less than 2mm), support rods, and guardrail retaining frames (with a support rod diameter of 16mm) in the conveying part of this machine are all treated by powder coating.
The safety protection device of this machine can automatically shut down and alarm when abnormal conditions occur in the equipment.
The appearance of this machine is neat and tidy. The surface is baked with paint, and the color is bright. The base color is white (depending on different customer requirements), and it is reasonably matched. The moving parts and safety protection devices adopt warning colors and warning signs
