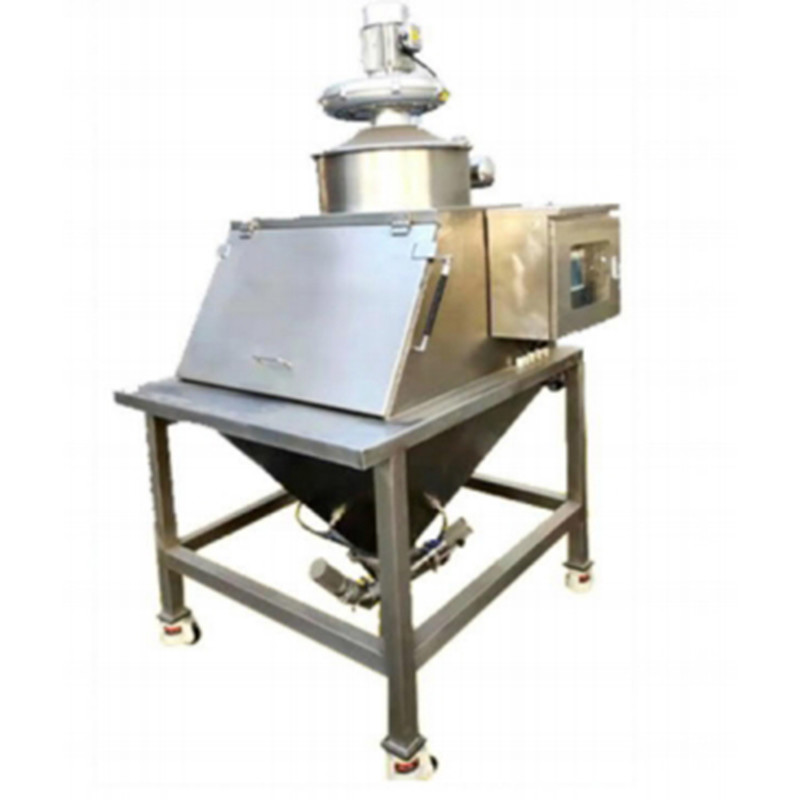

Manual Dust Removal Dust Free Feeding Station 0-50kg Per Bag

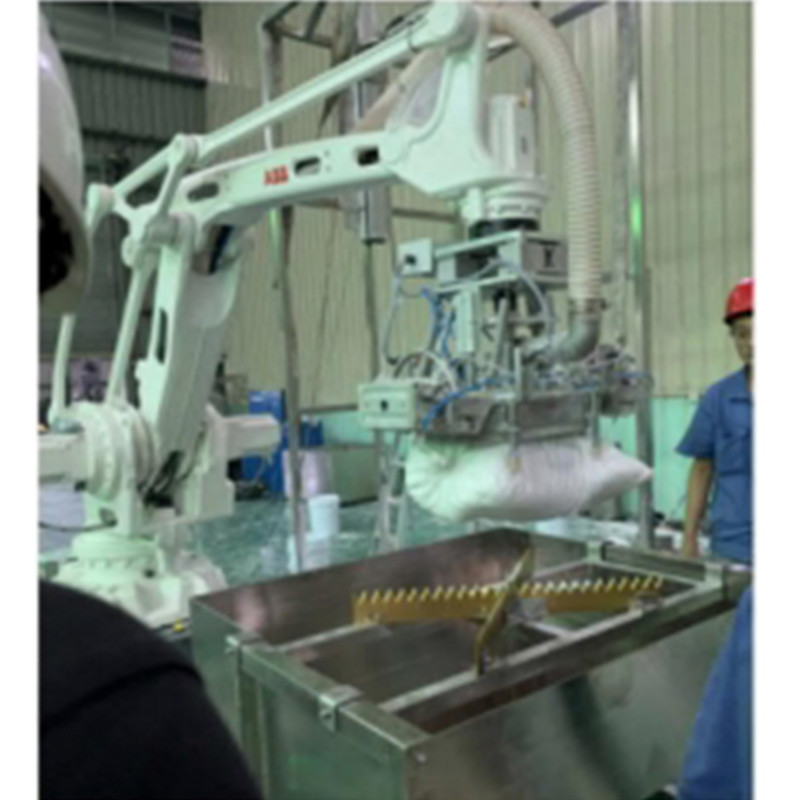

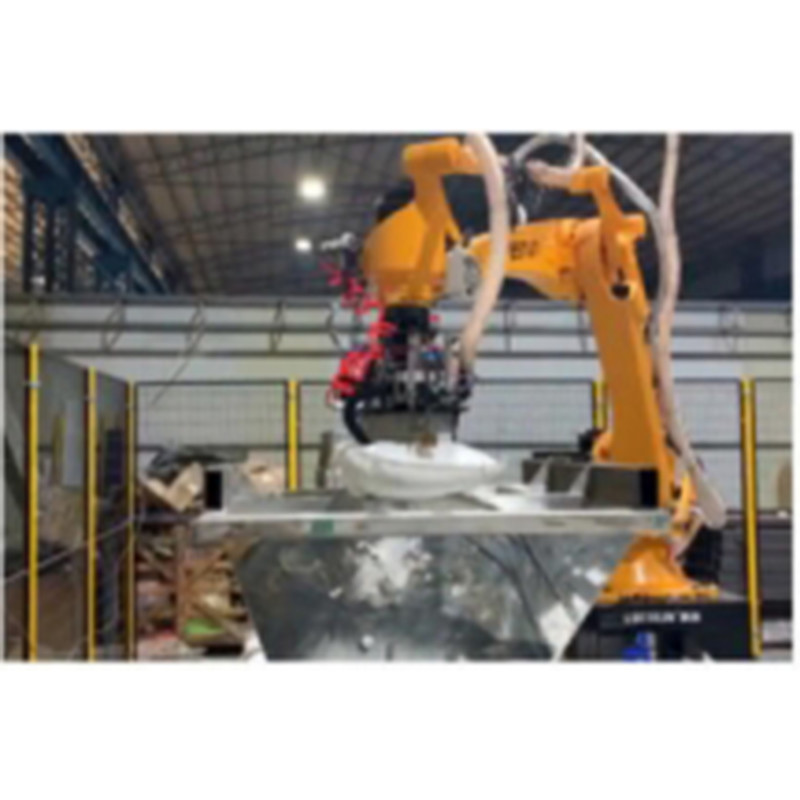

The dust-free feeding station is divided into manual feeding and mechanical hand feeding. After the bags are broken by manual or mechanical hand, the materials are poured into the bag-opening equipment in the unloading station. According to the process requirements, it can be combined with a vibrating hopper or a stirring hopper for discharging, and is used for the unloading operation of small bags of powdery materials.

The workflow of the dust-free feeding station

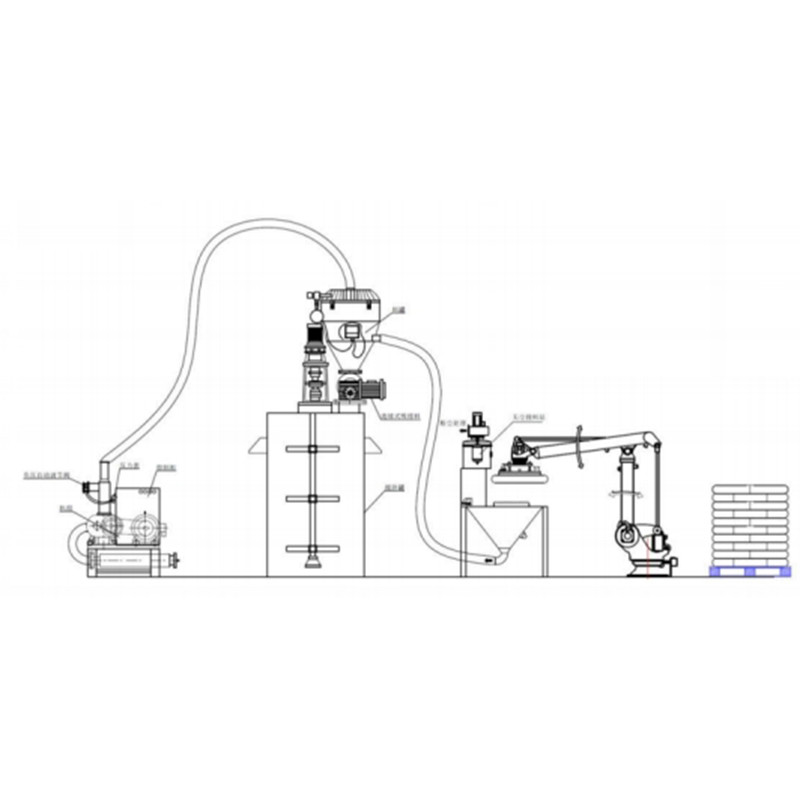

The material bag is placed on the bracket manually or by a mechanical hand and pushed into the grid. Next, make a cut in the material bag and tilt and shake the bag to empty it. The material will fall into the hopper by gravity and can be connected to the conveying unit equipment through the conveying pipe at the bottom to transfer the material
The effective output is to the designated position. The built-in induced draft dust collection filter can collect the dust produced during the bag emptying process. Its filter is cleaned by reverse compression air jet, and the cleared dust falls back into the hopper, enabling continuous feeding without interruption.

Product Features
The equipment is equipped with a dust removal function to prevent the flying of dust during the unpacking and feeding process and reduce material loss.
A vibrating screen can be installed inside to effectively remove foreign objects from the materials.
The equipment adopts intelligent control, has a high degree of automation and is easy to operate
The interior of the equipment is designed with no dead corners and is easy to disassemble and clean.
Function configuration:
Feeding specification :0-50kg per bag
Feeding method: Single feeding port/Double feeding port
Material lifting: Manual lifting bucket/lift truck/forklift
Arch breaking type: Pneumatic high-frequency vibration/activated hopper vibration
Back-blowing type: Pneumatic pulse
Optional equipment: Magnetic separator/Single-layer vibrating screen/coarse crusher/Bag collection device/Metering, weighing and conveying
The application scope is mainly used for unpacking and feeding dry powder and granular materials such as plastic resin, cement and food additives in 25KG or 50KG small bag packaging in the fields of plastics, rubber, medicine and chemical engineering.
