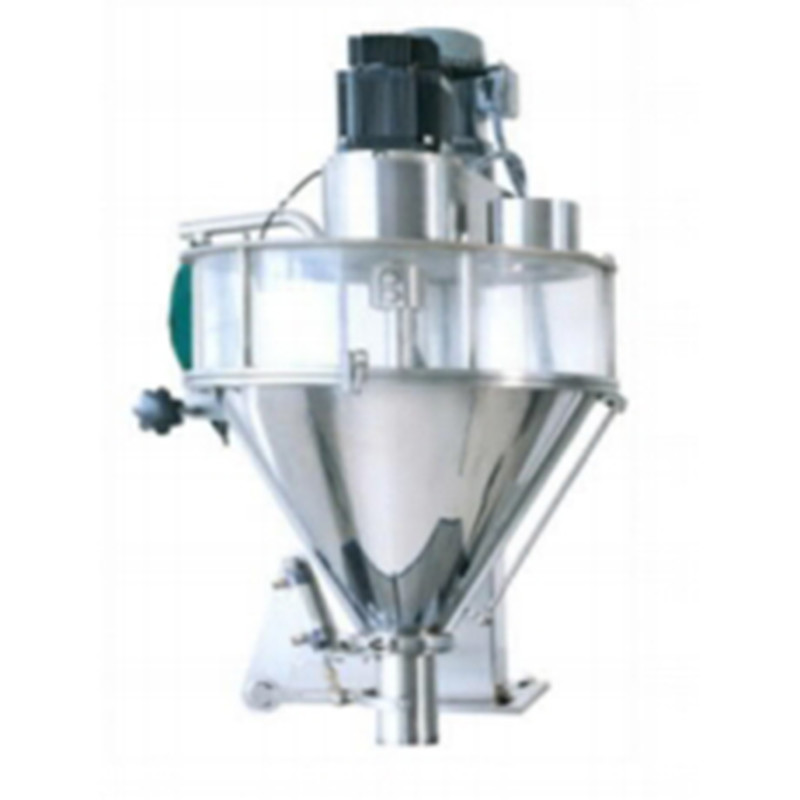

380V 1KW Screw Metering Machine Stainless Steel

  • 380V 1KW Screw Metering Machine Stainless Steel
Place of Origin Shandong Province, China
Brand Name Shandong Haotong
Minimum Order Quantity A set
Price Negotiable/negotiable/telegraphic
Delivery Time 3 months
Payment Terms Spot exchange
Supply Ability 1 car /1 month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range 10-300g Packaging Speed Max 60bags/min
Weighing Accuracy ±0.3-1.5% Electric Power Source 380V 1KW
External Dimensions L510*W585*H930 Weight 100kg
Measurement Method Spiral Rotary Filling Type
Highlight

1KW Screw Metering Machine

,

Stainless Steel Screw Metering Machine

,

380V Screw Metering Machine
Leave a Message
Product Description

Product Overview
The whole machine is made of stainless steel and is particularly suitable for packaging GMP certification, food hygiene certification, and chemical products that require corrosion resistance, etc.
It adopts a unique mechanical transmission method, making the structure extremely simple, with good stability and strong overload capacity.
The filling adopts servo motorized screw, which has the advantages of accurate positioning, high precision, fast speed, large torque, long service life, adjustable speed and good stability.
The stirring adopts a maintenance-free reduction motor made in Taiwan: low noise, long service life, and maintenance-free for life.
The fully sealed air-resistant glass stainless steel composite material box allows the movement of materials to be clearly visible, preventing dust from leaking out. The filling outlet is equipped with a dust collection device to protect the workshop environment.



Technical parameters
Project Small metering machine Medium-sized metering machine Large-scale metering machine
Measurement range 10-300g 100-3000g 500-5000g
Packaging speed Max 60bags/min Max50bags/min Max 40bags/min
Weighing accuracy ±0.3-1.5% ±0.3-1.5% ±0.3-1.5%
Electric power source 380V 1KW 380V 2.5KW 380v 3kw
External dimensions L510*W585*H930 L690*1030*H1100mm L600*W1250*2000mm
Weight 100kg 150kg 220kg
Measurement method Spiral rotary filling type Spiral rotary filling type Spiral rotary filling type
