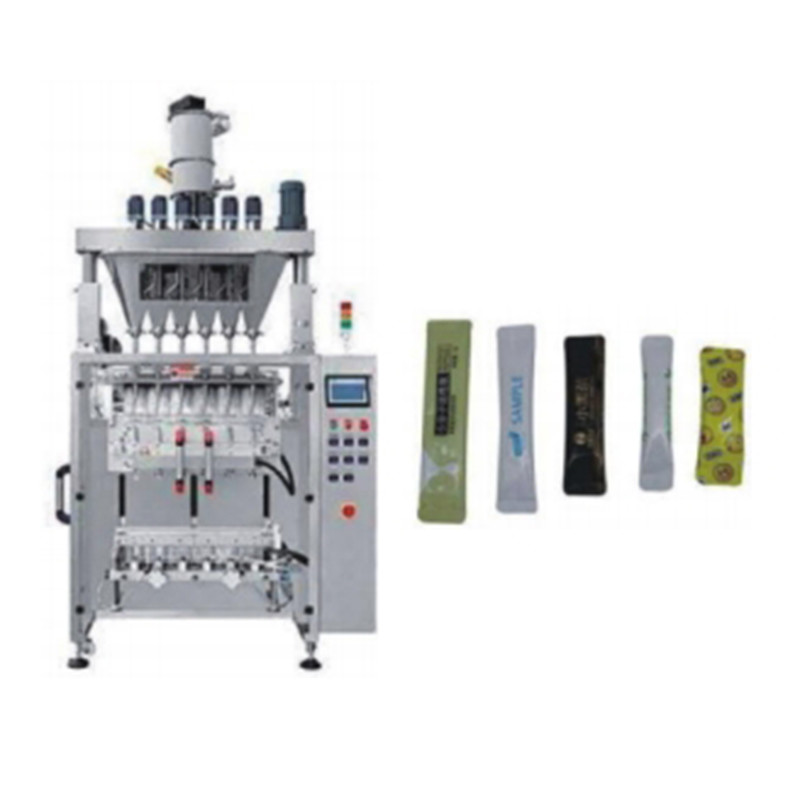

200-3000ml Vertical Powder Lapel Packaging Machine

  • 200-3000ml Vertical Powder Lapel Packaging Machine
Place of Origin Shandong Province, China
Brand Name Shandong Haotong
Model Number SPRS-LFF
Minimum Order Quantity A set
Price Negotiable/negotiable/telegraphic
Delivery Time 3 months
Payment Terms Spot exchange
Supply Ability 1 car /1 month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bag-making Length 80-400mm Bag-making Width 80-250mm
Film Width 520mm Packaging Speed 5 To 50 Bags Per Minute
Measurement Range 200-3000ml Air Pressure 0.65mpa
Gas Consumption 0.4m³/min Voltage 220V 50HZ
Power 4KW External Dimensions Length * Width * Height =1150*1795*1650mm
Machine Weight 600 Kilograms
Highlight

Vertical Powder Lapel Packaging Machine

,

200-3000ml Packaging Machine
Leave a Message
Product Description

The Chinese and English touch screen display makes the operation intuitive and simple.
●PLC computer control system, more stable operation, any parameters can be adjusted without stopping the machine.
It can store ten sets of parameters, making it more accurate to change varieties.
● The use of servo motors for pulling and touching ensures more accurate positioning.
● Independent temperature control system, with an accuracy of ±1℃.
The horizontal and vertical sealing temperatures are independently controlled, which can be well applied to various packaging materials such as composite films and PE films.
The packaging styles are diverse, including back sealing, corner insertion, continuous bag, punching, etc.
● The production of bags, sealing, packaging and date printing can be completed in one go.
The working environment is clean and quiet with low noise.

Technical parameters
Bag-making length 80-400mm
Bag-making width 80-250mm
Film width 520mm
Packaging speed 5 to 50 bags per minute
Measurement range 200-3000ml
Air pressure 0.65mpa
Gas consumption 0.4m³/min
Voltage 220V 50HZ
Power 4KW
External dimensions Length * width * height =1150*1795*1650mm
Machine weight 600 kilograms



Technical key points
The screw metering method is controlled by a servo motor, and the precision can reach +1%.
Adjusting the product does not require any tools.
The charging head is replaceable and can be adapted to materials such as composite film and PE film.
Applicable packaging range: Suitable for powdered materials, such as milk powder, coffee powder, starch and other powder types
