6kw Four Axis Fully Automatic Palletizer SPRS-SZM
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | Shandong Haotong |
| Model Number | SPRS-SZM |
| Minimum Order Quantity | 1 car |
| Price | Negotiable/negotiable/telegraphic |
| Delivery Time | 3 months |
| Payment Terms | Spot exchange |
| Supply Ability | 1 car /1 month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| External Dimensions | Length, Width And Height :2750x950x2600mm | Scope Of Work | 2000x3000mm |
|---|---|---|---|
| Power | 6kw | Main Material | Carbon Steel Powder Coating |
| Gas Source Pressure | 0.8Mpa | Gas Volume | ≥0.01m/h |
| Power Supply | 380v/50Hz | Cylinder | Shenchi Pneumatic |
| Servo Motor | Xinjie | Linear Guide Machine | Domestic Production |
| Sensor | Omron | Low-voltage Electrical Appliances | Chint |
| Highlight | 6kw fully automatic palletizer,Four Axis fully automatic palletizer |
||

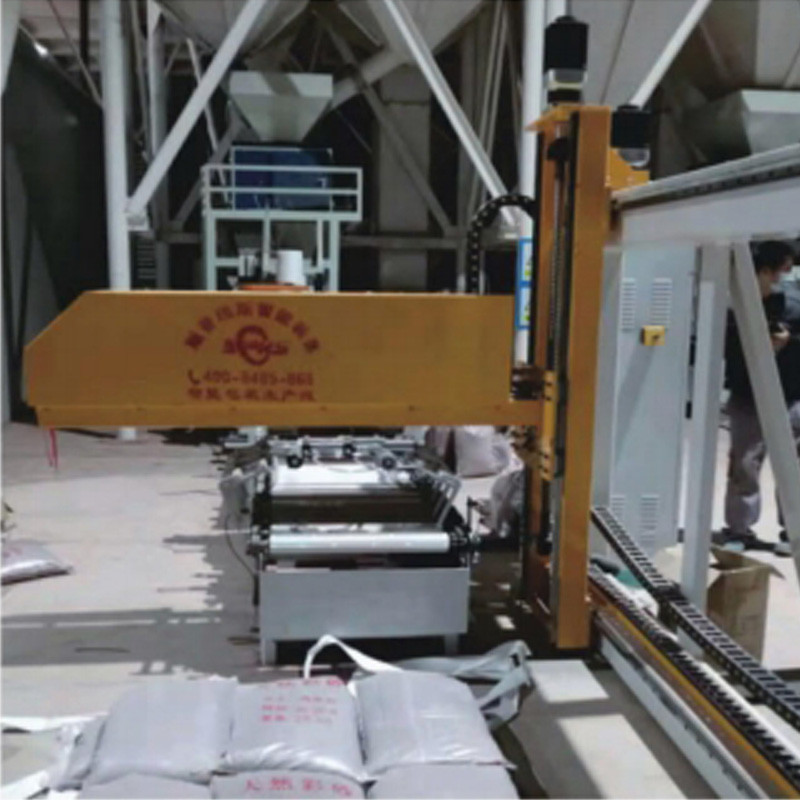

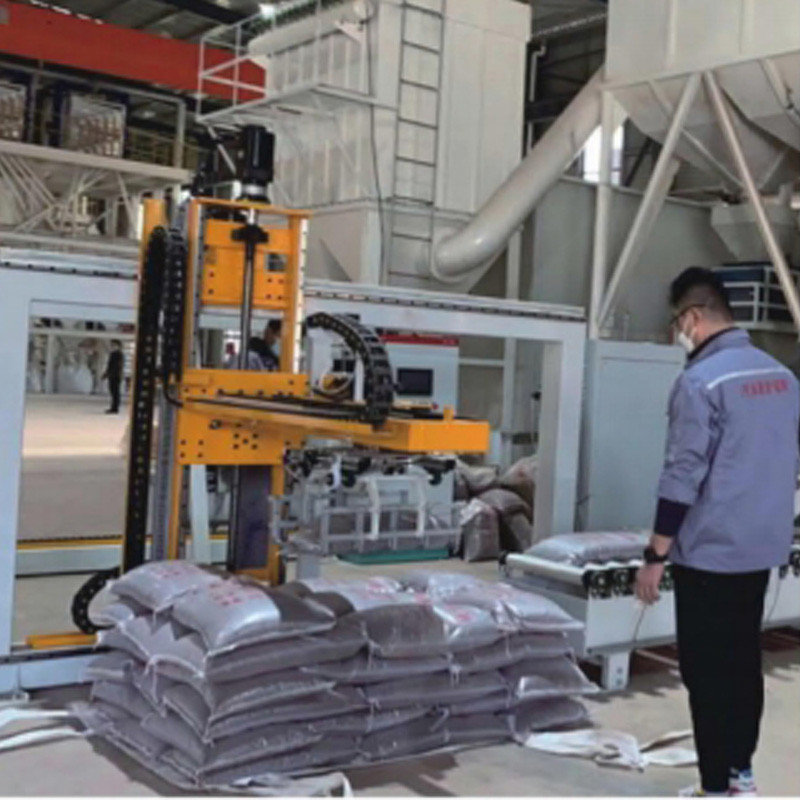

Product Description
This machine is suitable for multi-variety and batch operations, which is beneficial for improving product quality and labor efficiency
Dynamic productivity plays an important role in improving working conditions and the rapid renewal of products.
Therefore, coordinate robot palletizing machines are widely used in industry, agriculture, manufacturing, metallurgy and electricity
Enterprises such as subsidiaries, light industry and atomic energy.

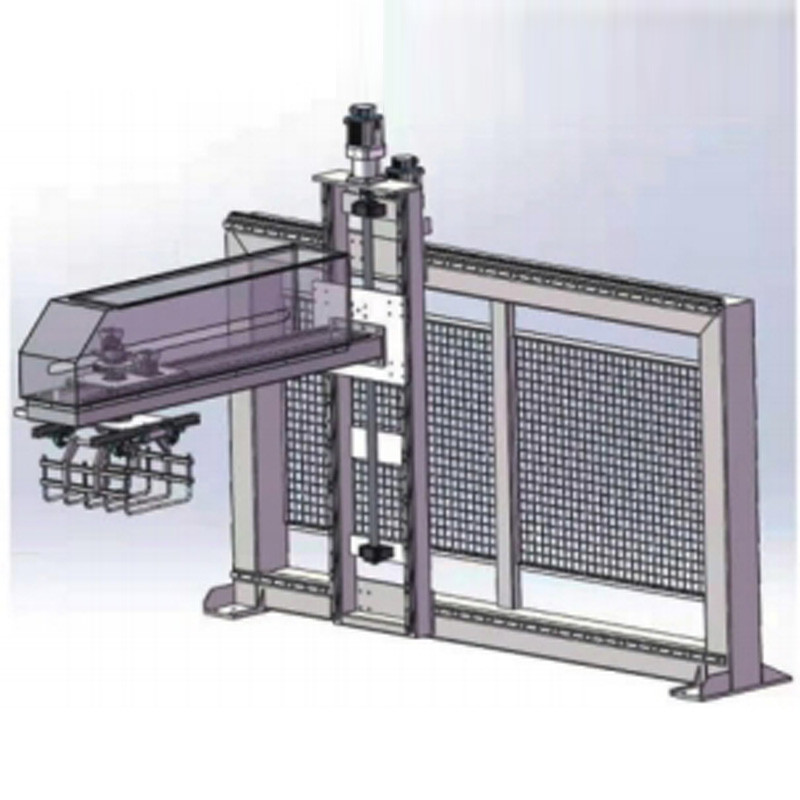

The four axes of this machine are the X-axis, Y-axis and Z-axis, as well as a screw attached to the Z-axis
The rotating shaft is used to achieve the automatic loading and unloading functions. The stroke of each axis, the size of the gripper and the grasping capacity
All forces can be designed according to the on-site requirements.
This machine's fully automated solution: It is integrated with filling machines, weighing machines and packaging machines
For dynamic production, the entire process only requires one person to manage or one person to oversee two or more pieces of equipment together
Greatly save labor, reduce labor wage costs and improve production efficiency
| Product configuration list | |||
| External dimensions | Length, width and height :2750x950x2600mm | Power supply | 380v/50Hz |
| Scope of work | 2000x3000mm | Cylinder | Shenchi Pneumatic |
| Power | 6kw | Servo motor | Xinjie |
| Main material | Carbon steel powder coating | Linear guide machine | Domestic production |
| Gas source pressure | 0.8Mpa | Sensor | Omron |
| Gas volume | ≥0.01m/h | Low-voltage electrical appliances | Chint |
| Product Features |
| It takes up little space and can be installed and used with just 3*3m |
| Equipped with the same servo control system as the robot, its accuracy is the same as that of robot palletizing |
| The device is equipped with a cache system to prevent speed from being affected when transferring heavy disks |
| This equipment is equipped with an inverted stack correction system to prevent the stack from collapsing. For bags with concentrated materials that are relatively slippery, it can be easily grasped |
| It can stack 400 to 500 times per hour and is suitable for stacking bagged, boxed, filled, bottled and other packaging materials |
