Automatic Adjustment Vehicles Loading Platform 30T 15m/Min Conveying Speed
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | Shandong Haotong |
| Model Number | Loading platform |
| Minimum Order Quantity | A (machine) |
| Price | Negotiable/negotiable/telegraphic |
| Delivery Time | 3 months |
| Payment Terms | Spot exchange |
| Supply Ability | One machine/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Load | 30T | Conveying Speed | 15m/min |
|---|---|---|---|
| Delivery Acceleration | 0.2m/s2 | Journey | 13.5m |
| Lifting Stroke | 400mm | Translation Stroke | 500mm |
| Equipment Adjustment Angle | ±1° | Loading Width | 2250～2500mm |
| Highlight | vehicles Loading platform,15m/min Loading platform,30T Loading platform |
||
Product Description

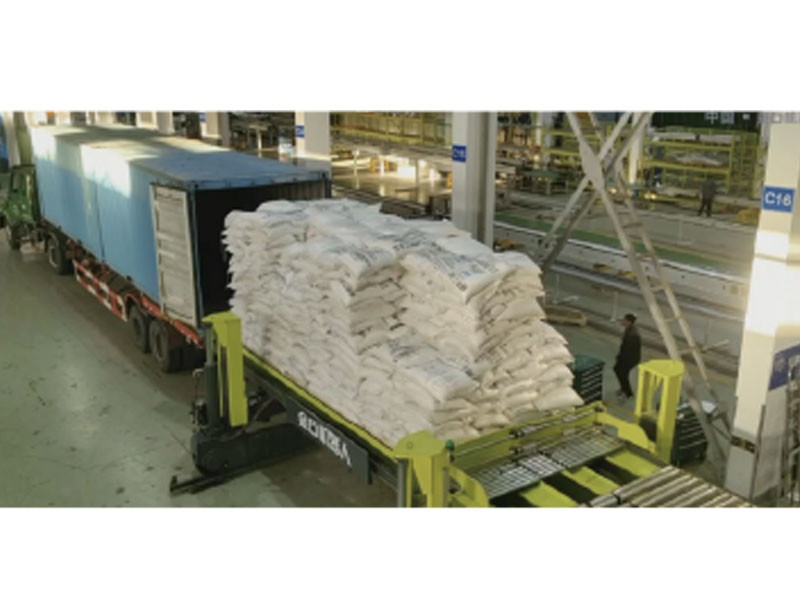

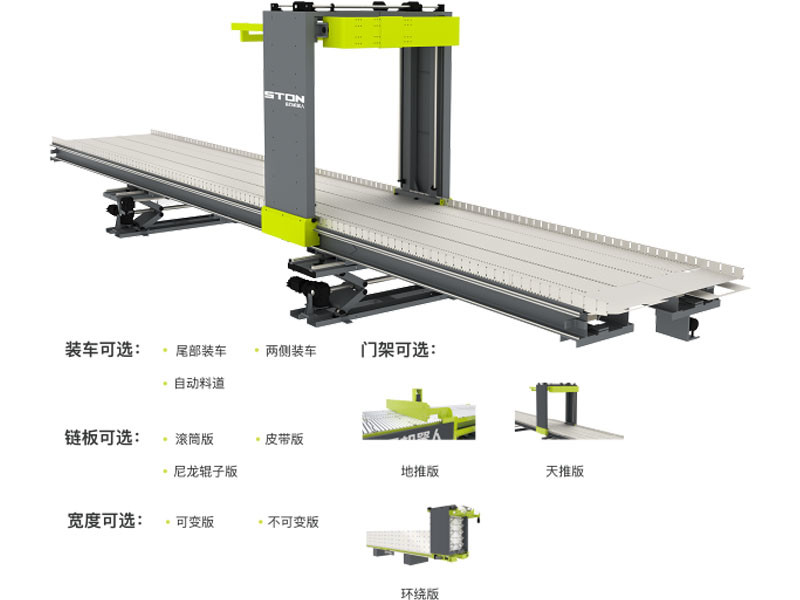

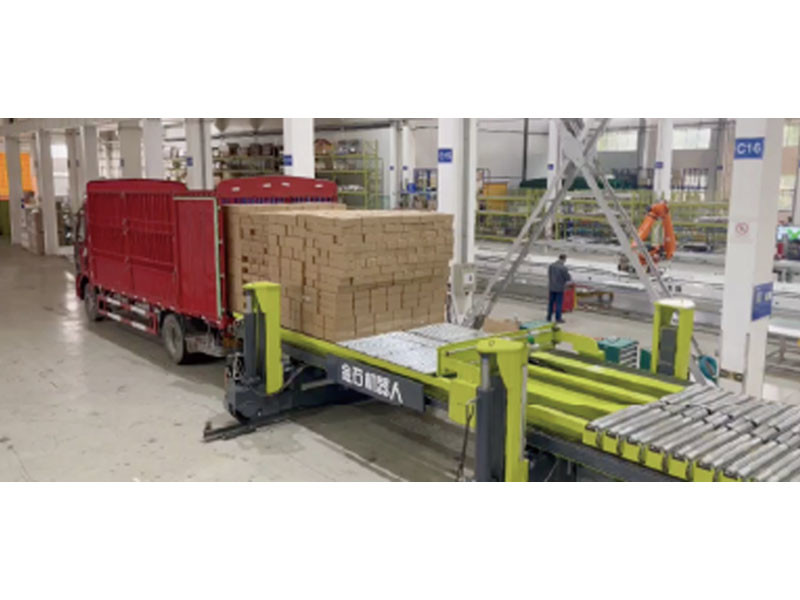

The loading method of the loading platform is that the goods are first lined up on the platform to prepare goods, and then the load chain plate part of the platform is pushed into the carriage as a whole, and then the chain plate is drawn out, so as to complete the loading. The loading platform can be deformed in the width, depth and height direction according to the position of the carriage on the ground. It is an adaptive loading platform for the carriage, which can be compatible with most vehicles on the market.
Product features:
1, automatic car search function
Automatic adjustment of height and width, no manual, through the chain drive plate, to achieve the platform of pushing function
2, adaptive settlement function
Adaptive settlement following body height during loading
3, efficient loading
2 minutes into the car
4, high compatibility
Bulk, bags, cartons, special-shaped, pallets, tons of bags and other cargo loading
Main parameters:
| Maximum load | 30T |
| Conveying speed | 15m/min |
| Delivery acceleration | 0.2m/s2 |
| journey | 13.5m |
| Lifting stroke | 400mm |
| Translation stroke | 500mm |
| Equipment adjustment Angle | ±1° |
| Loading width | 2250～2500mm |
| Loading height | 1150～1650mm |
| Loading length | 13.5m |
